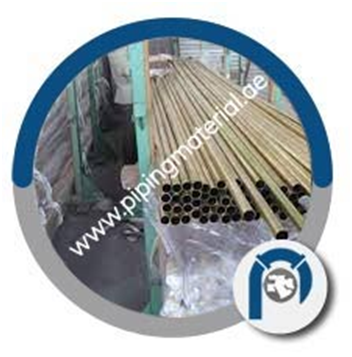

SA 213 tp304 heat exchanger tube

How much does SA 213 tp304 heat exchanger tube cost? (110)

The cost of the heat exchanger tube can vary depending on several factors such as the quantity being purchased, the size of the tubes, and the location of the supplier. Generally, the price for a small quantity of SA 213 tp304 heat exchanger tube can range from around $5 to $15 per foot.

However, for larger quantities, the price can be significantly lower, with some suppliers offering discounts for bulk purchases. Additionally, the cost may be affected by factors such as transportation costs and import tariffs, if the tubes are being purchased from an international supplier. It is also important to note that prices can fluctuate based on market conditions.

SA 213 tp304 heat exchanger tube

What is SA 213 tp304L heat exchanger tube used for? (130)

This is a type of stainless steel tube that is commonly used in heat exchangers. The SA 213 Tp304L grade of stainless steel is particularly well-suited for use in heat exchangers due to its high strength, corrosion resistance, and ability to withstand high temperatures.

Some common applications of SA 213 tp304L heat exchanger tube include:

• Industrial processes requiring heat transfer between different fluids, such as chemical processing, oil and gas production, and power generation.
• HVAC systems, where the tubes can be used to transfer heat between the air and a fluid, such as water or refrigerant.
• Automotive and aerospace industries, where heat exchangers are used to cool engine fluids and other components.
• Food and beverage processing, where heat exchangers are used to heat or cool liquids and gases during production.

What is difference between SA 213 tp304 and tp304L heat exchanger tubes? (177)

Both are made from a type of stainless steel known as 304. However, there is a key difference between the two grades that make them suitable for different applications.

The main difference between SA 213 Tp304 and Tp304L is the carbon content. SA 213 Tp304 has a higher carbon content of 0.08%, while SA 213 Tp304L has a lower carbon content of 0.03%. This difference in carbon content affects the properties of the steel, particularly its ability to withstand welding.

Because of its lower carbon content, SA 213 Tp304L is considered to be a more weldable grade of stainless steel. This makes it well-suited for use in applications where the heat exchanger tubes will be welded during installation or maintenance. SA 213 Tp304, on the other hand, is not as weldable and may be more prone to cracking or warping during welding.

Another important difference is Tp304L is more resistant to carbide precipitation, which makes it suitable for use in applications where the heat exchanger tubes will be exposed to high temperatures or corrosive environments.

Can SA 213 tp304 heat exchanger tube be welded? (157)

This heat exchanger tube can be welded, but it may be more challenging than welding other types of stainless steel due to its higher carbon content. The higher carbon content makes the steel more prone to cracking or warping during the welding process.

To minimize the risk of cracking or warping, it is important to use the appropriate welding technique and filler material. For example, TIG welding with a low-carbon filler material is considered to be one of the most effective methods for welding this heat exchanger tube.

It is also important to properly clean the tube and surrounding area before welding and to control the heat input during the welding process to prevent overheating and warping.

Additionally, preheat and post-weld heat treatment (PWHT) may be used to minimize the risk of cracking. PWHT is a process of heating the material above a certain temperature for a certain period, then cooling it down slowly to room temperature.

How do you avoid import costs for SA 213 tp304L heat exchanger tube in Bahrain? (163)

There are several ways to avoid or minimize import costs for these heat exchanger tubes in Bahrain. Some possible options include:

• Working with a supplier located in Bahrain or a nearby country can help to reduce transportation costs.
• Negotiating a favourable price with the supplier, which may include bulk discounts for larger orders.
• Importing the tubes through a free trade zone, which can offer tax and duty exemptions for certain types of goods.
• Applying for an import permit or license, which may qualify the import for duty-free or reduced-duty status.
• Utilizing a freight forwarder or customs broker with experience in importing goods to Bahrain, who can help to navigate customs regulations and tariffs.

It's important to note that tariffs and import regulations are subject to change and vary depending on the specific product and the country of origin. It is always recommended to check with the local customs office for the most updated information and to ensure compliance with the regulations in Bahrain.
